GHOST HUNTING EQUIPMENT
FREE to download
By all means download the Arduino code for the three DIY ghost hunting equipment builds. Unfortunately we do not have the schemetics at this time, but we will endevour to try and locate them for you.
Hopefully you can make sense of the code!

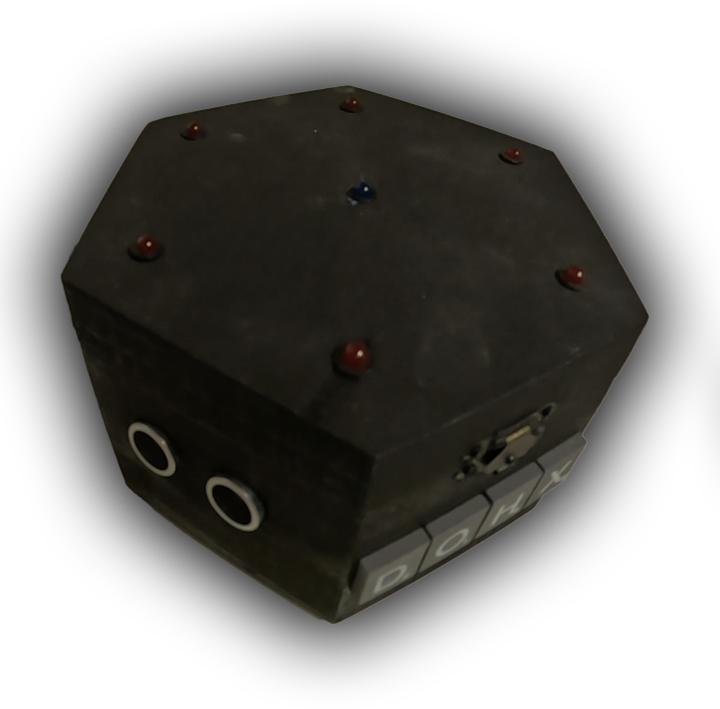

DOHX Ultra-Sonic Sensor

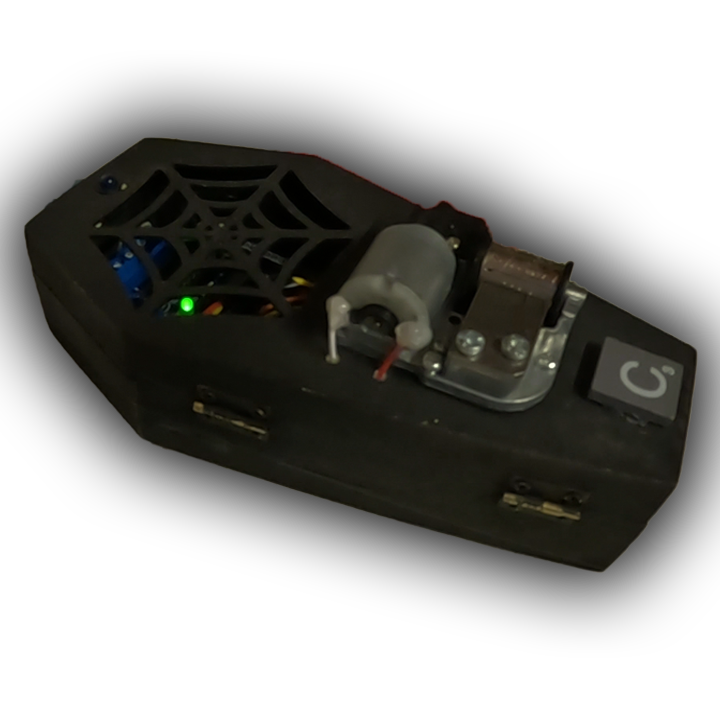

IR Coffin Music Box

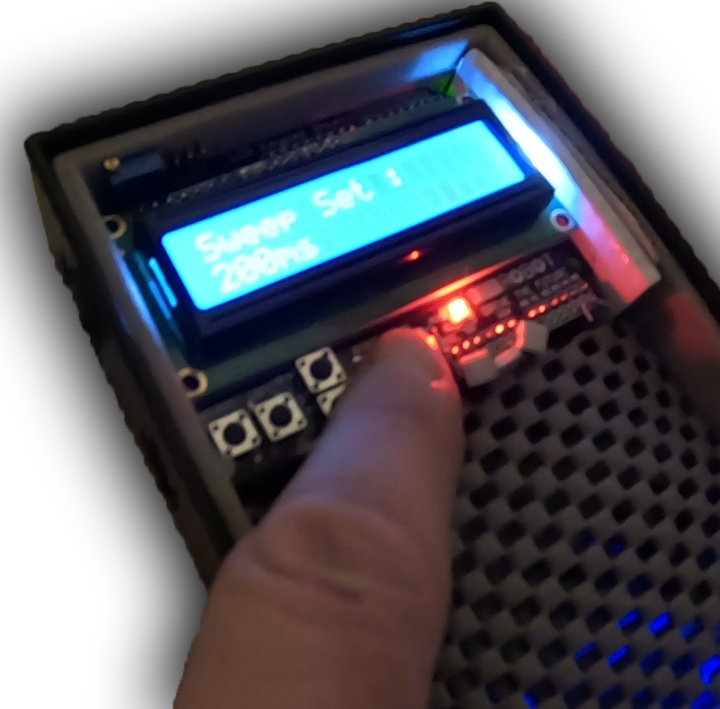

FM Based Spirit Box
Ghost Hunting – Pre-formatted Code
const int trig = 12;
const int echo = 13;
const int trig1 = 8;
const int echo1 = 9;
const int LED1 = 8;
const int LED2 = 7;
const int LED3 = 6;
const int LED4 = 5;
const int LED5 = 4;
const int LED6 = 3;
const int LED7 = 2;
const int buzzer = 11;
int duration = 0;
int distance = 0;
int duration1 = 0;
int distance1 = 0;
int safetyDistance;
void setup()
{
pinMode(trig , OUTPUT);
pinMode(echo , INPUT);
pinMode(trig1 , OUTPUT);
pinMode(echo1 , INPUT);
pinMode(LED1 , OUTPUT);
pinMode(LED2 , OUTPUT);
pinMode(LED3 , OUTPUT);
pinMode(LED4 , OUTPUT);
pinMode(LED5 , OUTPUT);
pinMode(LED6 , OUTPUT);
pinMode(LED7 , OUTPUT);
Serial.begin(9600);
}
void loop()
{
digitalWrite(trig , HIGH);
delayMicroseconds(10);
digitalWrite(trig , LOW);
duration = pulseIn(echo , HIGH);
distance = (duration/2) / 28.5 ;
Serial.println(distance);
if ( distance <= 7 )
{
digitalWrite(LED1, HIGH);
}
else
{
digitalWrite(LED1, LOW);
}
if ( distance <= 14 )
{
digitalWrite(LED2, HIGH);
}
else
{
digitalWrite(LED2, LOW);
}
if ( distance <= 21 )
{
digitalWrite(LED3, HIGH);
}
else
{
digitalWrite(LED3, LOW);
}
if ( distance <= 28 )
{
digitalWrite(LED4, HIGH);
}
else
{
digitalWrite(LED4, LOW);
}
if ( distance <= 35 )
{
digitalWrite(LED5, HIGH);
}
else
{
digitalWrite(LED5, LOW);
}
if ( distance <= 42 )
{
digitalWrite(LED6, HIGH);
}
else
{
digitalWrite(LED6, LOW);
}
if ( distance <= 49 )
{
digitalWrite(LED7, HIGH);
pinMode(buzzer, OUTPUT);
tone(buzzer,1000);
}
else
{
digitalWrite(LED7, LOW);
pinMode(buzzer,0);
}
digitalWrite(trig1 , HIGH);
delayMicroseconds(10);
digitalWrite(trig1, LOW);
duration1 = pulseIn(echo1 , HIGH);
distance1 = (duration1/2) / 28.5 ;
Serial.println(distance1);
if ( distance1 <= 7 )
{
digitalWrite(LED1, HIGH);
}
else
{
digitalWrite(LED1, LOW);
}
if ( distance1 <= 14 )
{
digitalWrite(LED2, HIGH);
}
else
{
digitalWrite(LED2, LOW);
}
if ( distance1 <= 21 )
{
digitalWrite(LED3, HIGH);
}
else
{
digitalWrite(LED3, LOW);
}
if ( distance1 <= 28 )
{
digitalWrite(LED4, HIGH);
}
else
{
digitalWrite(LED4, LOW);
}
if ( distance1 <= 35 )
{
digitalWrite(LED5, HIGH);
}
else
{
digitalWrite(LED5, LOW);
}
if ( distance1 <= 42 )
{
digitalWrite(LED6, HIGH);
}
else
{
digitalWrite(LED6, LOW);
}
if ( distance1 <= 49 )
{
digitalWrite(LED7, HIGH);
pinMode(buzzer, OUTPUT);
tone(buzzer,1000);
}
else
{
digitalWrite(LED7, LOW);
pinMode(buzzer,0);
}
} #include <AFMotor.h>
AF_DCMotor motor(4);
int ir = 2;
int x;
int led = A0;
void setup() {
Serial.begin(9600);
pinMode(2, INPUT);
//Set initial speed of the motor & stop
motor.setSpeed(160);
motor.run(RELEASE);
}
void loop() {
uint8_t i;
x = digitalRead(ir);
Serial.println(x);
if (x == 0) //Sensor activate
{
digitalWrite(A0, HIGH);
motor.run(FORWARD);
// Accelerate from zero to maximum speed
for (i = 0; i < 255; i++) {
motor.setSpeed(160);
}
} else //Sensor Activated[when x is 0]
{
digitalWrite(A0, LOW);
motor.run(RELEASE);
delay(1000);
}
} #include <Wire.h>
#include <TEA5767.h>
#include <LiquidCrystal.h>
#define TEA5767_I2C_ADDR 0x60 // TEA5767 I2C address
TEA5767 radio = TEA5767();
//LCD pin to Arduino
const int pin_RS = 8;
const int pin_EN = 9;
const int pin_d4 = 4;
const int pin_d5 = 5;
const int pin_d6 = 6;
const int pin_d7 = 7;
const int pin_BL = 10;
int speed = 0;
int dw = 100;
int maxWait = 1000;
LiquidCrystal lcd( pin_RS, pin_EN, pin_d4, pin_d5, pin_d6, pin_d7);
int R = 0;
int U = 0;
int D = 0;
int L = 0;
void setup() {
Serial.begin(9600);
Wire.begin();
lcd.begin(16, 2); // Initialize the LCD
lcd.clear();
lcd.setCursor(0,0);
lcd.print("Days of Horror");
lcd.setCursor(0,1);
lcd.print("SBox V2.1 (2023)");
delay(1500);
lcd.clear();
lcd.setCursor(0,0);
lcd.print("Set Sweep :");
lcd.setCursor(0,1);
lcd.print(speed);
delay(10);
// Initialize TEA5767
initializeTEA5767();
int x;
x = analogRead (0);
}
void loop() {
int x;
x = analogRead (0);
if (x < 60) {
R = 1; //Right;
// Scan through all FM frequencies from highest to lowest
do
for (float frequency = 87.5; frequency <= 108.0; frequency += 0.1) {
setFrequencyTEA5767(frequency);
displayFrequency(frequency);
delay(speed); // Adjust delay as needed for your scanning speed
U = 0;
D = 0;
L = 0;
}
while (1);
}
if (x >= 60 and x < 200) {
// "Up" button
// Increase the number by 10
if (speed > 90)
speed = 100;
else
speed += 10;
lcd.setCursor(0,0);
lcd.print("Sweep Set :");
lcd.setCursor(0,1);
lcd.print(" ");
lcd.setCursor(0,1);
lcd.print(speed);
delay(300);
}
else if (x < 400) {
// "Down" button
if (speed < 10 )
speed = 0;
else // Decrease the number by 10
speed -= 10;
lcd.setCursor(0,0);
lcd.print("Sweep Set :");
lcd.setCursor(0,1);
lcd.print(" ");
lcd.setCursor(0,1);
lcd.print(speed);
delay(300);
}
else if (x < 600) {
L = 1; //Left;
do
for (float frequency = 108.0; frequency >= 87.5; frequency -= 0.1) {
setFrequencyTEA5767(frequency);
displayFrequency(frequency);
delay(speed); // Adjust delay as needed for your scanning speed
R = 0;
D = 0;
U = 0;
}
while (1);
}
else if (x >= 600 and x < 800){
D = 1; //Select;
// Generate and scan random FM frequencies
do
for (int s = 0; s < 10; s++) { // Adjust the number of random frequencies as needed
float frequency = random(875, 1080) / 10.0; // Generate random frequency
setFrequencyTEA5767(frequency);
displayFrequency(frequency);
delay(speed); // Adjust delay as needed for your scanning speed
}
while (1);
}
}
void initializeTEA5767() {
Wire.beginTransmission(TEA5767_I2C_ADDR);
Wire.write(0x80); // Command to reset TEA5767
Wire.endTransmission();
delay(130);
}
void setFrequencyTEA5767(float frequency) {
uint16_t frequencyB = (frequency * 1000000 + 225000) / 8192;
uint8_t frequencyH = frequencyB >> 8;
uint8_t frequencyL = frequencyB & 0xFF;
Wire.beginTransmission(TEA5767_I2C_ADDR);
Wire.write(0x60 | frequencyH); // Set high byte of frequency
Wire.write(frequencyL); // Set low byte of frequency
Wire.write(0xB0); // Command to set frequency
Wire.write(0x10); // Disable mute and search mode
Wire.endTransmission();
delay(100);
}
void displayFrequency(float frequency) {
if (R == 1) {
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Speed : ");
lcd.setCursor(8,0);
lcd.print(speed);
lcd.setCursor(0, 1);
lcd.print(frequency, 1);
}
else if ( L ==1 ) {
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Speed : ");
lcd.setCursor(8,0);
lcd.print(speed);
lcd.setCursor(0, 1);
lcd.print(frequency, 1);
}
else if (D == 1) {
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("Speed : ");
lcd.setCursor(8,0);
lcd.print(speed);
lcd.setCursor(0, 1);
lcd.print(frequency, 1);
}
}
